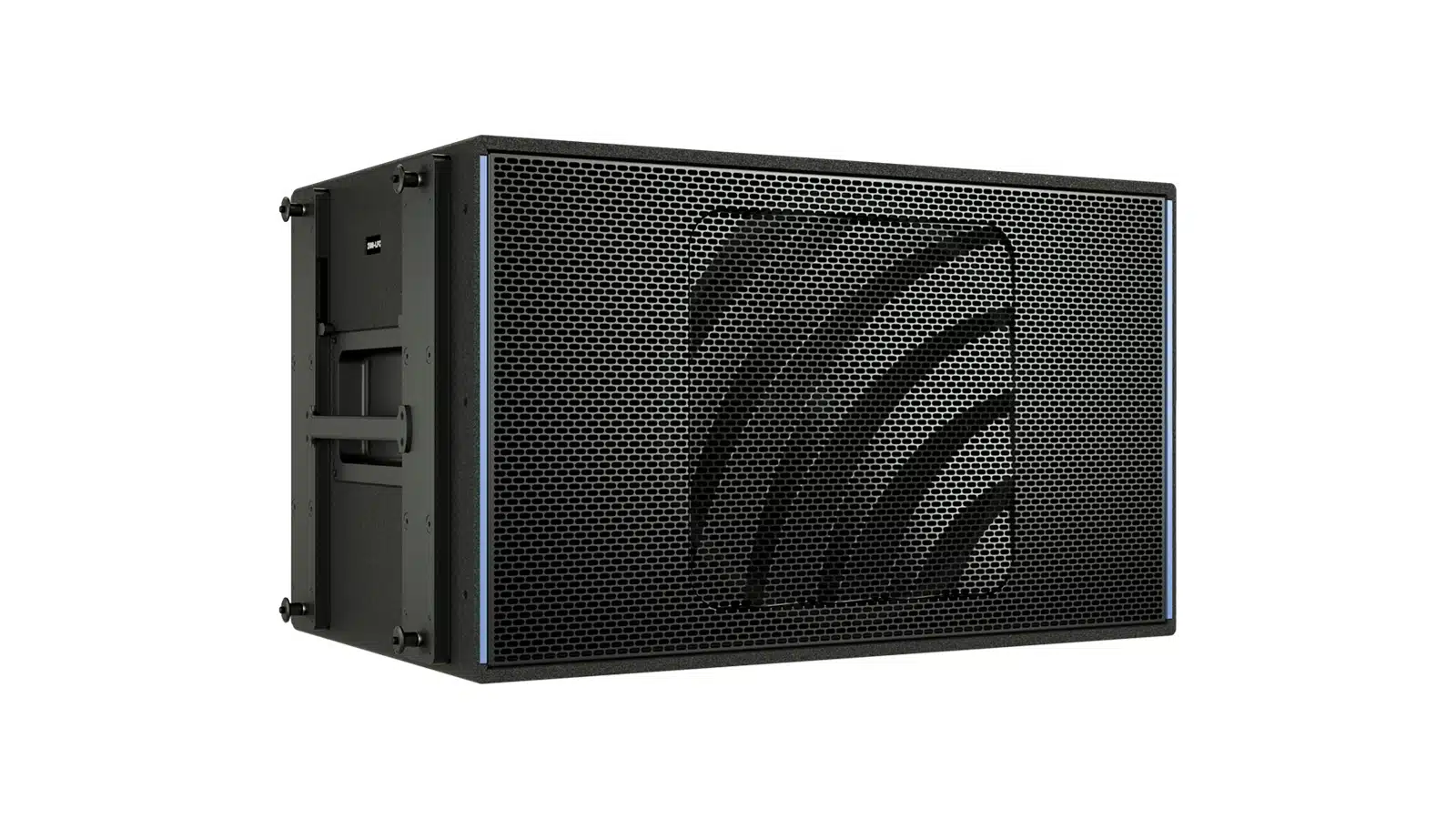

2100-LFCLow-Frequency Control Element

Find a Reseller

Turn sound into something
more profound.

Feel music – mind, body, and soul.

30 – 125 Hz response

Feel the highs of great lows. With 35% more range, the 2100-LFC helps audiences feel music from head to toe.

A single 21-inch driver

We packed all the performance of two 18-inch drivers into a single 21-inch powerhouse, making it easy to load and transport without sacrificing sound.

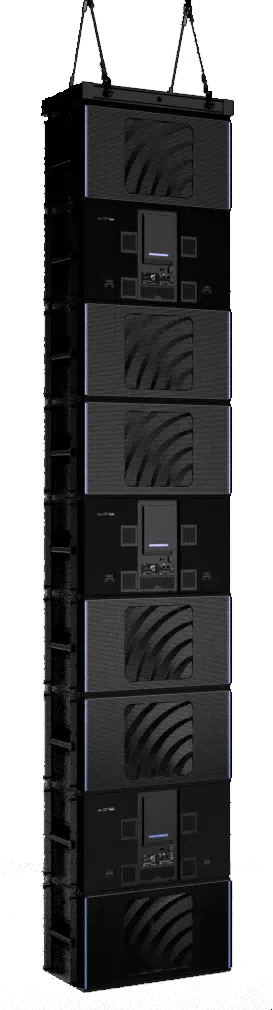

2100-LFC Array

20% lighter

Extended response in a smaller, lighter package means it’s easier to rig and raise, while still raising audience experiences.

8000 watts of peak power

The 2100-LFC’s power will impress engineers and leave a lasting impression on fans. Plus, it consumes power more efficiently, with smart cooling to ensure a linear response — even at full power.

Self-powered
combined amp and driver

Combining the amp and driver into one box means shorter cables and less room for audio distortion. So sound is never altered, but audiences are.

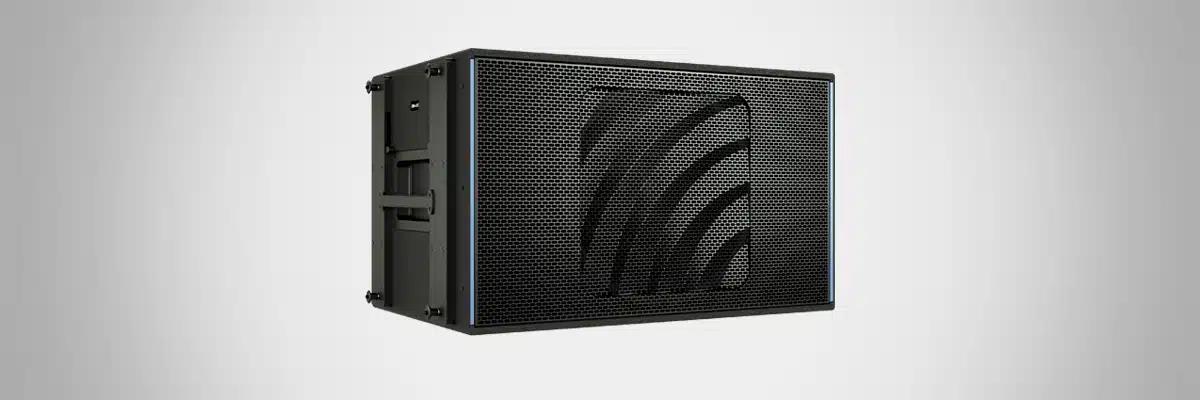

2100-LFC
360

Learn More About
the 2100‑LFC

Tap into the power of the 2100‑LFC. We're happy to answer any questions you may have.

Images of the 2100-LFC are pre-production renders.
2100-LFCmilan

Feel music — mind, body, and soul.

All the Power

By pairing a single, all-new 21-inch driver with four voice coils to a potent Class D amplifier, the 2100-LFC produces a linear acoustic output suitable for the most powerful applications, yet it realizes this comparable performance in a loudspeaker that is much lighter and narrower.

Cool, Clear Lows

The 2100-LFC’s self-powered system includes active cooling not just for the amplifier but also for the magnet and voice coil assembly to ensure a linear response, even with the most demanding and protracted program material.

Hertz You Can Feel

The 2100-LFC’s 30 – 125 Hz extended response pairs perfectly with PANTHER loudspeakers, extending the range and delivering the ultimate sonic experience for fans from the front row to the furthest seats.

2100-LFC Features

Features for Days

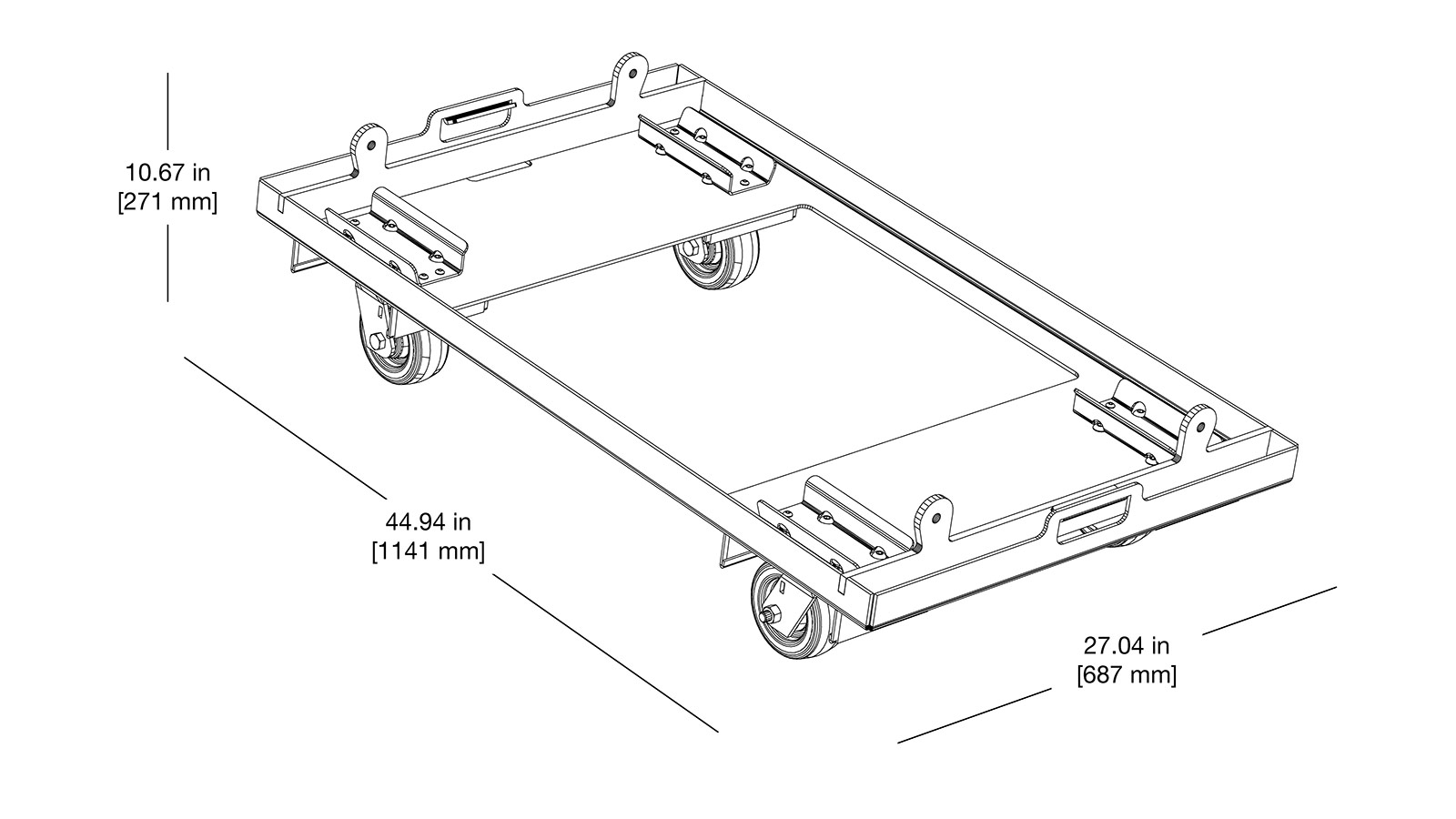

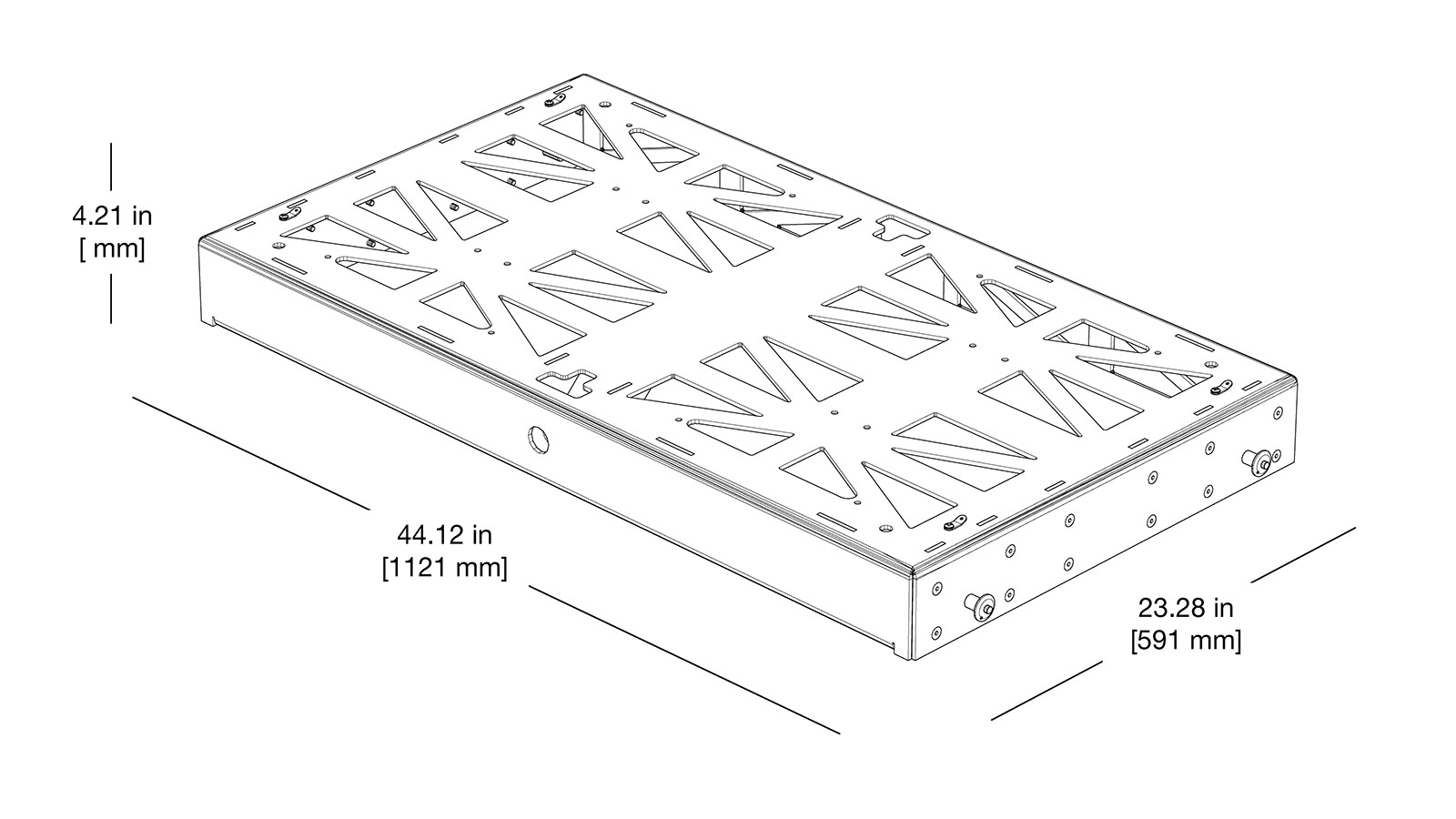

Hassle-free hardware options give you the flexibility to configure the 2100-LFC to your exact system specs: Fly or ground stack it. Deploy it in standard or cardioid configurations. Accessories include caster frames for efficient transport and grid kits for flying up to 16 cabinets.

In addition, as all AV technology transitions to a networked environment, PANTHER and the 2100-LFC now comprise the first large-scale, full-bandwidth line array system to offer Milan-protocol digital audio coupled with comprehensive monitoring telemetry, all connected directly to each individual loudspeaker. This total networked capability, when coupled with Meyer Sound’s new Nebra connection and monitoring software, enables fast system configuration and comprehensive monitoring of all system parameters.


Turn Sound Into Something More Profound

An LFC Built to Last

The 2100-LFC is ready to grow within a digital infrastructure. Inputs include a Milan-certified, AVB endpoint for next-gen audio-over-IP solutions, bringing a digital signal path directly to the cabinet.

Less Weight = More Green

The 2100-LFC is 20% lighter than previous models. It was conceived and engineered to meet the new demands of today’s greener touring and installation, where the reduced size and weight must be coupled with increased energy efficiency. The cabinet exterior dimensions allow for more efficient truck pack in both USA and European semi-trailers and the increased efficiency of the Class D amplifiers reduces power demand to lower long-term costs in permanent installations.

The Power of Self-Powered

2100-LFC is self-powered, so there’s no calibrating crossovers, and no struggling with amplifier racks, long cable runs, or extra accessories.



An LFC Built to Last

The 2100-LFC is ready to grow within a digital infrastructure. Inputs include a Milan-certified, AVB endpoint for next-gen audio-over-IP solutions, bringing a digital signal path directly to the cabinet.



Less Weight = More Green

The 2100-LFC is 20% lighter than previous models. It was conceived and engineered to meet the new demands of today’s greener touring and installation, where the reduced size and weight must be coupled with increased energy efficiency. The cabinet exterior dimensions allow for more efficient truck pack in both USA and European semi-trailers and the increased efficiency of the Class D amplifiers reduces power demand to lower long-term costs in permanent installations.



The Power of Self-Powered

2100-LFC is self-powered, so there’s no calibrating crossovers, and no struggling with amplifier racks, long cable runs, or extra accessories.



The Self-Powered Advantage

Meyer Sound has been pioneering self-powered loudspeakers for professional installations and touring since 1995. We’ve committed to self-powered systems because we know they deliver unrivaled clarity, reliable performance, value, and ease of use.

If you’ve been thinking about investing in a self-powered system, you’ve come to the right place.

John Meyer

First, a Little History...

The story of self-powered loudspeakers is in many ways the story of Meyer Sound itself.

In the 1970s, sound reinforcement technology was inconsistent science at best, and at worst, led to show-ending failures. A young John Meyer, designing loudspeakers for San Francisco’s McCune Sound Service, wanted to bring quality and reliability to sound systems, and he knew the answer lay in self-powered loudspeakers. In 1979 Meyer founded his own speaker company; early Meyer Sound innovations include the iconic HD-1 self-powered studio monitor launched in 1989.

Today Meyer Sound offers a full range of self-powered sound reinforcement products. Meyer Sound systems can be found on tour with artists ranging from Ed Sheeran to Metallica, on Broadway and London’s West End, and in performance venues from the San Francisco Opera to the Vienna Philharmonic not to mention sports stadiums, cruise ships, and houses of worship around the world.

HD-1

Why Self-Powered?

Self-powered loudspeakers offer several advantages over their passive counterparts when it comes to fidelity, reliability, and simplicity. The great part is, you’ll start to reap the benefits of a self-powered system before you even power up.

Ease of deployment: System set-up is so much easier when you have fewer components and fewer cables to worry about being miswired. Since self-powered loudspeakers incorporate amplification, you’ll never have to deal with matching speakers to amplifiers or connecting components. You don’t have to worry about calibration of gain and crossover setting which means more time focusing on the show. Eliminating amp racks doesn’t just streamline system deployment, it streamlines your inventory whether you’re a rental house or a road warrior. And when you consider that the average amp rack weighs nearly 300 pounds and takes up four feet of truck space, the efficiencies get even clearer. Let alone when you want to fly the amplifier racks to get closer to the speakers, often requiring more rigging points and more motors.

Predictable, reliable operation: Internal amplification is closely matched to drivers. Because individual components have been optimized during manufacturing, you can expect consistent sound from show to show. Built-in, factory-optimized protection circuitry provides extra assurance without degrading signal quality. And, when you have less equipment, you have less risk of failure.

ULTRA X-40

Better frequency and phase response: Because self-powered loudspeakers incorporate sophisticated processing, they are calibrated to exhibit optimal response curves in key performance parameters. Active crossovers are more precise, sophisticated designs, and bi-amped systems are time aligned, eliminating phase issues. The result? Accurate sound throughout the speaker’s range, at any volume level.

Unparalleled clarity: In powered monitors, internal amplifiers are precision-matched to drivers, delivering optimal power at all times for cleaner sound. And because amps are built into loudspeaker cabinets, there’s no need for long lengths of connecting cable, which can become prone to distortion and signal loss.

Tighter transients: Since self-powered loudspeakers have very short internal cables, amps inside can more effectively dampen driver mechanical motion, which leads to better sonic accuracy and tighter, crisper transients. (And, there’s none of the loss in levels and signal quality inherent over long cable distances.)

Certified Safe: Nothing matters more than the safety of your staff and customers. Because self-powered loudspeakers incorporate amplification, they must undergo rigorous testing by Underwriters Laboratories and other international organizations to ensure they operate safely and guard against the risk of fire, electric shock, and inadequate structural design. Enjoy peace of mind knowing Meyer Sound powered products are certified by FCC, UL, CSA, CE, and CEE the most stringent agencies in the business.

The Problems with Passive

What about passive loudspeakers? At first glance, passive systems may seem like a bargain. But we already know that passive systems require more components and accessories than powered systems. Sonically, they exhibit potential for signal loss over distances, and it is very hard to ensure consistent, optimal sound and volume as amplifiers have many variables to consider when being matched to loudspeakers, such as cable lengths and gauge as well as the number of speakers connected to the amplifier.

Passive systems are often touted as easy to service. But because powered loudspeakers are so complex to design and build, self-powered loudspeakers usually represent the top innovations from leading manufacturers. Better quality translates to better reliability, which means fewer maintenance issues in the long run.

At face value, passive systems might seem less expensive and easier to maintain. But once you start adding in amps, cables, and other components not to mention increased transport and labor costs you’ll find that those savings just don’t add up to a better value.

Step Up to a Self-Powered System

Once you recognize all of the advantages inherent in self-powered loudspeaker systems, it’s easy to understand why the world’s top venues and productions rely on them to deliver consistently stunning sound.
