UP-4slimUltraCompact Installation Loudspeaker


  • RESOURCES
  • Find a Reseller

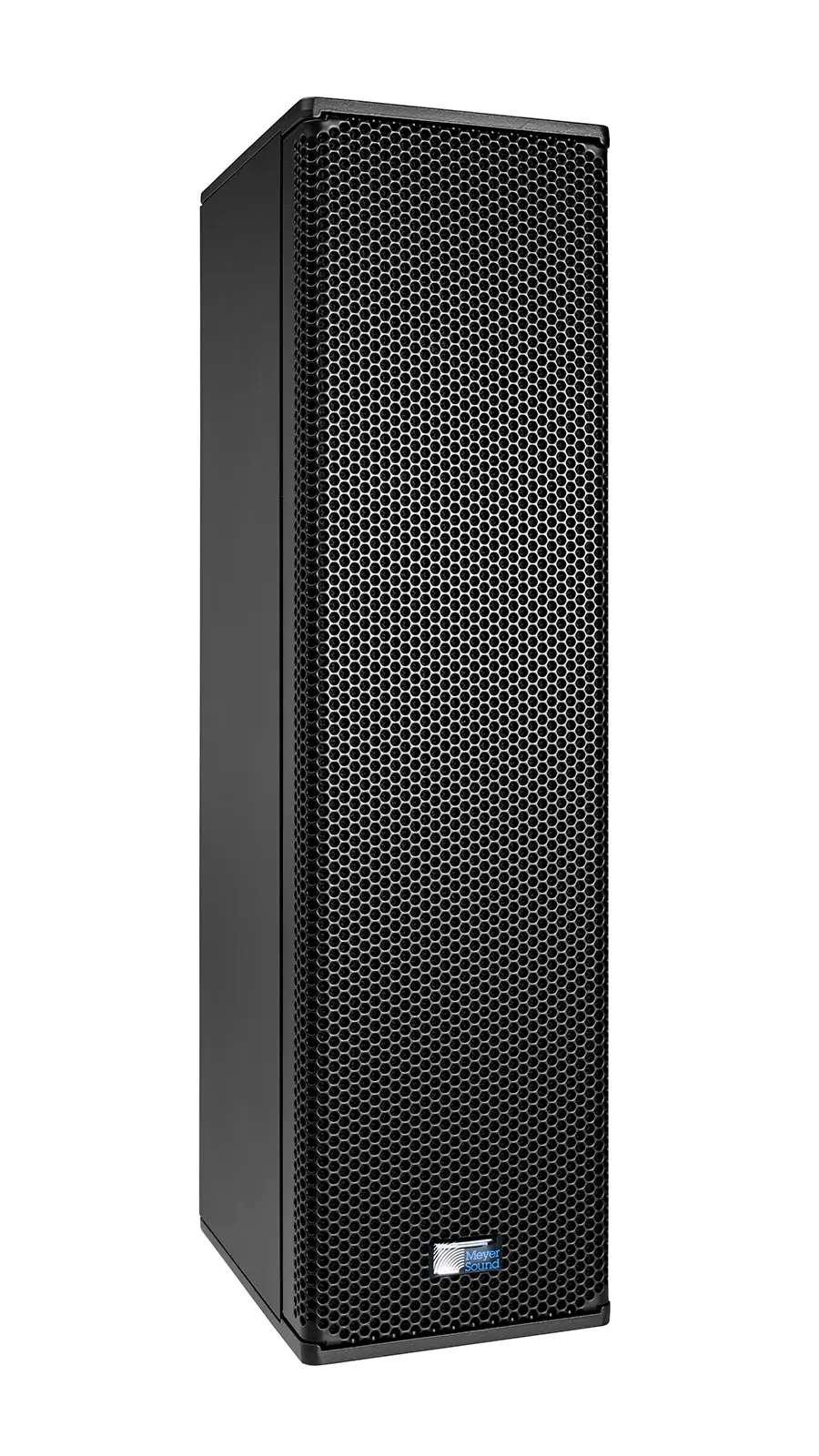

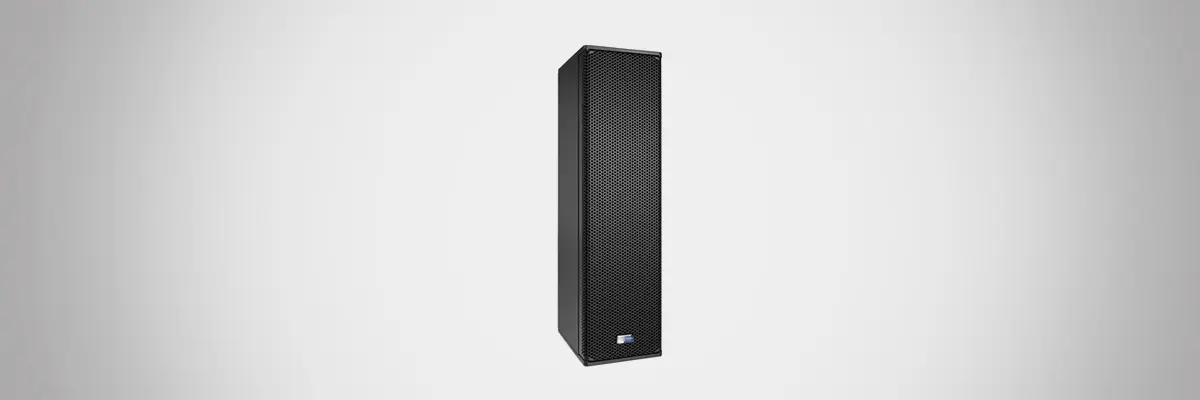

UP-4slim

Premium Sound, When Space Is at a Premium

Sonically Stunning, Streamlined Looks

The UP-4slim delivers uncompromising fidelity in a slim, discreet design, so you can serve up a breathtaking sonic experience that never distracts from your star attractions.

Aim Far and Wide

Extraordinary audio in every seat? The UP-4slim has you covered. Its 100-degree pattern reaches a wide area for a more consistent sonic experience, and its unique driver configuration prevents acoustic interference.

An Unobstructed View

The UP-4slim’s compact footprint gives you the flexibility to project full-fidelity sound from tight spaces—from front and under-balcony fills to installed AV systems to theme parks—without blocking crucial sightlines.


Finely Tuned, Fully Loaded

Power Up the Smart Way

The rack-mount MPS-488P IntelligentDC power supply delivers both balanced audio and DC power to the UP-4slim over a single composite multiconductor cable. Power up to eight loudspeakers with a single unit.

All Systems Go

Monitor performance in real time from your Windows PC, with optional RMS remote monitoring.

From Spoken Word to Thundering Herd

The UP-4slim’s 65Hz–18kHz range is ideal for medium-sized installations and vocal reinforcement systems. Add an optional subwoofer to extend low-end response for a full-range system.

A Master of Disguise

Order the UP-4slim in custom colors that perfectly match your venue. Add optional weatherproofing for protection from the elements.



Power Up the Smart Way

The rack-mount MPS-488P IntelligentDC power supply delivers both balanced audio and DC power to the UP-4slim over a single composite multiconductor cable. Power up to eight loudspeakers with a single unit.



All Systems Go

Monitor performance in real time from your Windows PC, with optional RMS remote monitoring.



From Spoken Word to Thundering Herd

The UP-4slim’s 65Hz–18kHz range is ideal for medium-sized installations and vocal reinforcement systems. Add an optional subwoofer to extend low-end response for a full-range system.



A Master of Disguise

Order the UP-4slim in custom colors that perfectly match your venue. Add optional weatherproofing for protection from the elements.



The Self-Powered Advantage

Meyer Sound has been pioneering self-powered loudspeakers for professional installations and touring since 1995. We’ve committed to self-powered systems because we know they deliver unrivaled clarity, reliable performance, value, and ease of use.

If you’ve been thinking about investing in a self-powered system, you’ve come to the right place.

John Meyer

First, a Little History...

The story of self-powered loudspeakers is in many ways the story of Meyer Sound itself.

In the 1970s, sound reinforcement technology was inconsistent science at best, and at worst, led to show-ending failures. A young John Meyer, designing loudspeakers for San Francisco’s McCune Sound Service, wanted to bring quality and reliability to sound systems, and he knew the answer lay in self-powered loudspeakers. In 1979 Meyer founded his own speaker company; early Meyer Sound innovations include the iconic HD-1 self-powered studio monitor launched in 1989.

Today Meyer Sound offers a full range of self-powered sound reinforcement products. Meyer Sound systems can be found on tour with artists ranging from Ed Sheeran to Metallica, on Broadway and London’s West End, and in performance venues from the San Francisco Opera to the Vienna Philharmonic   not to mention sports stadiums, cruise ships, and houses of worship around the world.

HD-1

Why Self-Powered?

Self-powered loudspeakers offer several advantages over their passive counterparts when it comes to fidelity, reliability, and simplicity. The great part is, you’ll start to reap the benefits of a self-powered system before you even power up.

Ease of deployment: System set-up is so much easier when you have fewer components and fewer cables to worry about being miswired. Since self-powered loudspeakers incorporate amplification, you’ll never have to deal with matching speakers to amplifiers or connecting components. You don’t have to worry about calibration of gain and crossover setting which means more time focusing on the show. Eliminating amp racks doesn’t just streamline system deployment, it streamlines your inventory   whether you’re a rental house or a road warrior. And when you consider that the average amp rack weighs nearly 300 pounds and takes up four feet of truck space, the efficiencies get even clearer. Let alone when you want to fly the amplifier racks to get closer to the speakers, often requiring more rigging points and more motors.

Predictable, reliable operation: Internal amplification is closely matched to drivers. Because individual components have been optimized during manufacturing, you can expect consistent sound from show to show. Built-in, factory-optimized protection circuitry provides extra assurance without degrading signal quality. And, when you have less equipment, you have less risk of failure.

ULTRA X-40

Better frequency and phase response: Because self-powered loudspeakers incorporate sophisticated processing, they are calibrated to exhibit optimal response curves in key performance parameters. Active crossovers are more precise, sophisticated designs, and bi-amped systems are time aligned, eliminating phase issues. The result? Accurate sound throughout the speaker’s range, at any volume level.

Unparalleled clarity: In, self-powered floor monitors internal amplifiers are precision-matched to drivers, delivering optimal power at all times for cleaner sound. And because amps are built into loudspeaker cabinets, there’s no need for long lengths of connecting cable, which can become prone to distortion and signal loss.

Tighter transients: Since self-powered loudspeakers have very short internal cables, amps inside can more effectively dampen driver mechanical motion, which leads to better sonic accuracy and tighter, crisper transients. (And, there’s none of the loss in levels and signal quality inherent over long cable distances.)

Certified Safe: Nothing matters more than the safety of your staff and customers. Because self-powered loudspeakers incorporate amplification, they must undergo rigorous testing by Underwriters Laboratories and other international organizations to ensure they operate safely and guard against the risk of fire, electric shock, and inadequate structural design. Enjoy peace of mind knowing Meyer Sound powered products are certified by FCC, UL, CSA, CE, and CEE   the most stringent agencies in the business.

The Problems with Passive

What about passive loudspeakers? At first glance, passive systems may seem like a bargain. But we already know that passive systems require more components and accessories than powered systems. Sonically, they exhibit potential for signal loss over distances, and it is very hard to ensure consistent, optimal sound and volume as amplifiers have many variables to consider when being matched to loudspeakers, such as cable lengths and gauge as well as the number of speakers connected to the amplifier.

Passive systems are often touted as easy to service. But because powered loudspeakers are so complex to design and build, self-powered loudspeakers usually represent the top innovations from leading manufacturers   better quality translates to better reliability, which means fewer maintenance issues in the long run.

At face value, passive systems might seem less expensive and easier to maintain. But once you start adding in amps, cables, and other components   not to mention increased transport and labor costs   you’ll find that those savings just don’t add up to a better value.

Step Up to a Self-Powered System

Once you recognize all of the advantages inherent in self-powered loudspeaker systems, it’s easy to understand why the world’s top venues and productions rely on them to deliver consistently stunning sound.


UP-4slim Accessories

MPK-POLE /W MSA-STAND ADPT CUP 35MM KIT
MPK-UMS Pole Mount Kit
for UMS to UPM and UP-4XP/UP-4slim, rated 80 lbs max, w/MSA-UPM stand adaptor and 43"x1-3/8" (1090 mm x 35 mm) pole.Part Number: 40.086.014.01
MPK-POLE,35MM,M20,BOTH ENDS,ADJ.POLE KIT
MPK-POLE
Adjustable length 927–1524 mm (36.5–60 in), 35 mm (1.375 in) dia. pole with assisted lift. Additional 38 mm (1.5 in) adapter included.Part Number: 40.010.973.01
MSA-STAND ADAPTER CUP 35MM 60 LBS
MSA-STAND ADAPTER 35MM 60LB
1-3/8" (35 mm) stand adaptor for UPM, UP-4XP, UP-4slim, UPJunior, and yokes to add tilt. Pole not included.Part Number: 40.086.013.01
MUB-UP-4slim KIT
MUB-UP4slim
U-bracket to mount UP-4slim on wall, floor, or ceilingPart Number: 40.274.969.01
MYA-UP-4slim YOKE KIT
MYA-UP4slim
Cradle-style yoke for a single UP-4slim loudspeaker, includes M8 hardware for installation to loudspeakerPart Number: 40.274.039.01
