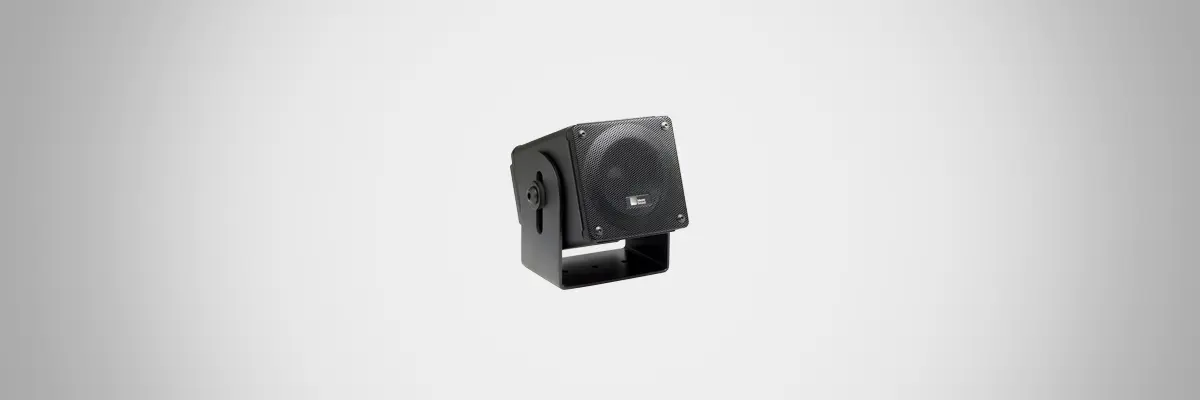

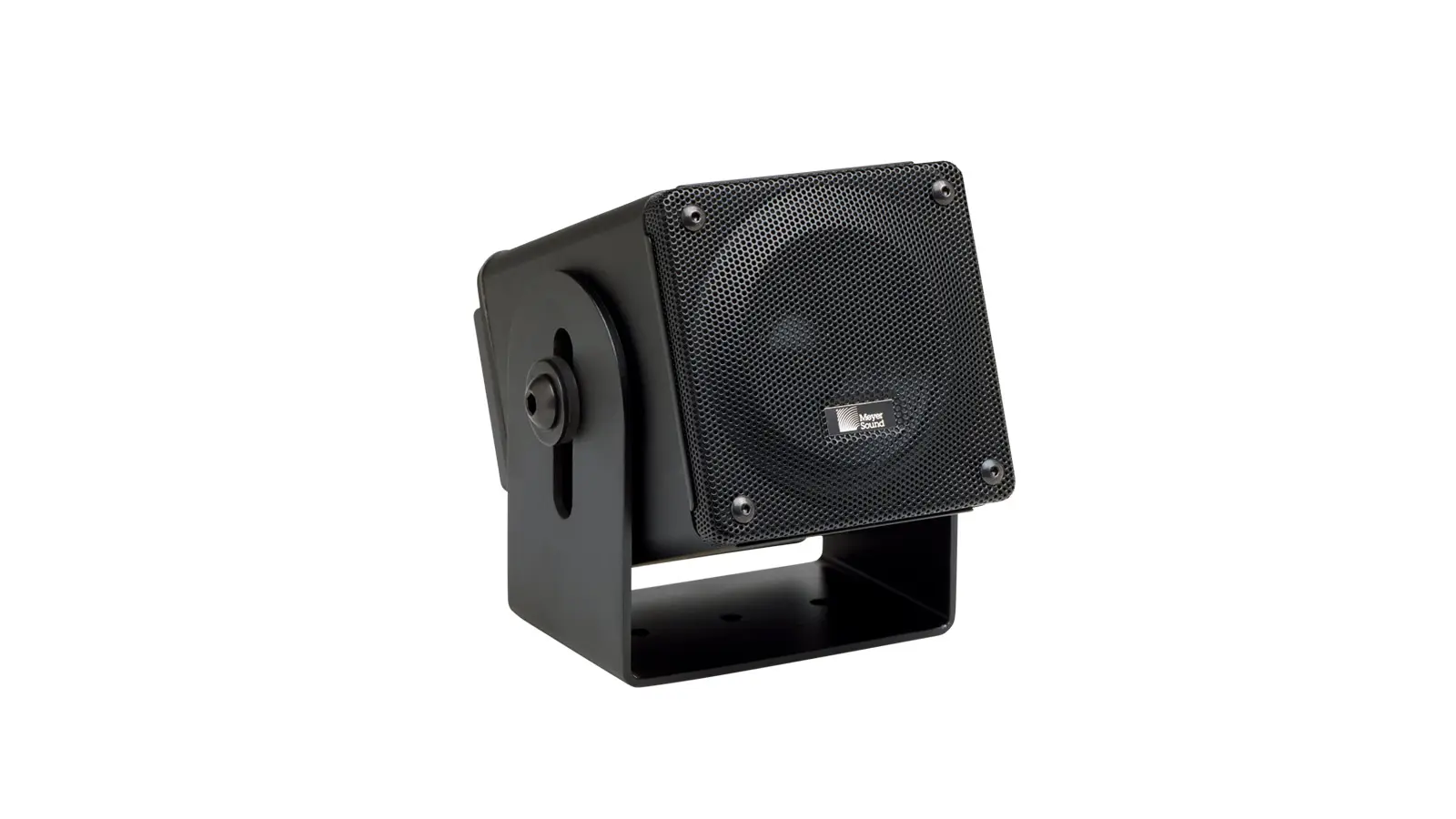

MM-4XPMiniature Self-Powered Loudspeaker
MM-4XP, MM-4XPD


MM-4XP

Extremely Compact Size for Small Spaces

MM-4XP: Effortlessly Amplify Speech and Music

Fill and spot coverage for systems with space limitations and visibility concerns such as clubs, restaurants, portable AV, or galleries or museum displays.

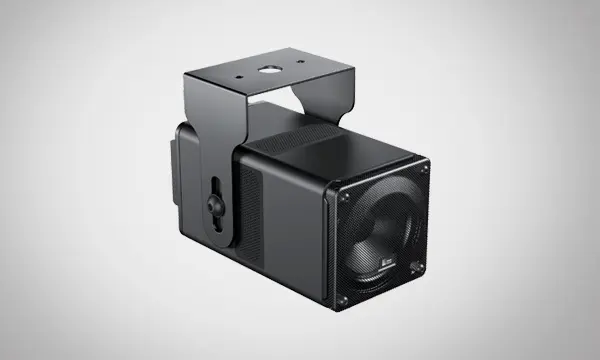

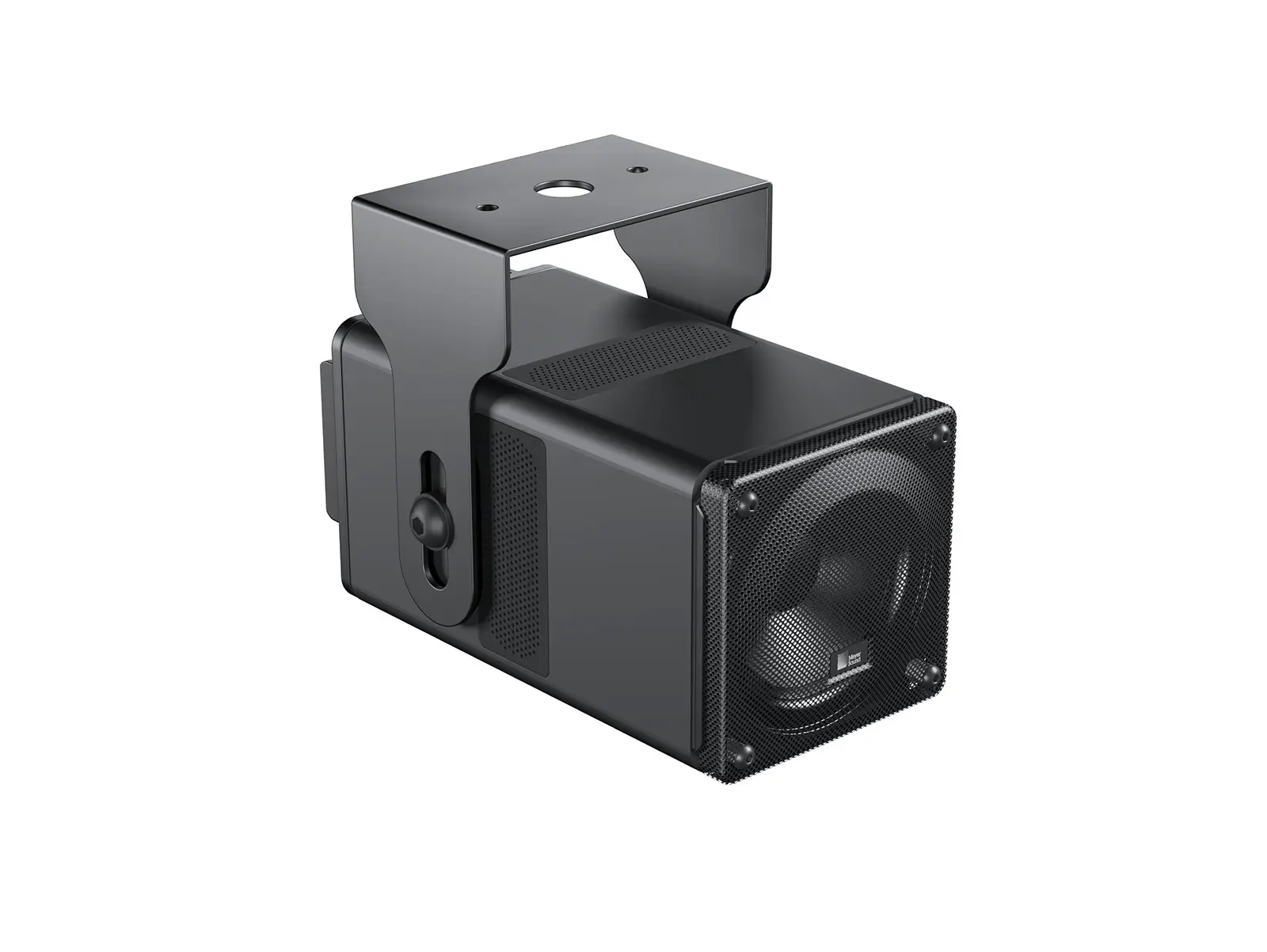

MM-4XPD: Directional Speaker for Highly Reverberant Spaces

Specifically designed for high-quality distributed systems in reverberant spaces, the directional polar pattern of the MM-4XPD, especially at low frequencies, significantly reduces room excitation and increases intelligibility.

Coverage Patterns

Patent-pending technology yields a high degree of attenuation between the front and rear of the loudspeaker, achieving a directional polar response using passive acoustical techniques, with the MM-4XP having the added advantage of a hypercardioid coverage pattern.

Cone Tranducer

The MM loudspeakers feature a single 4-inch cone transducer, designed and manufactured at Meyer Sound's Berkeley, California factory, delivering an impressive maximum peak SPL of 113 dB and a wide operating frequency range of 120 Hz to 18 kHz with very low distortion.

Self-powered Advantage

Self-powered technology eliminates amplifier racks, long loudspeaker cables, and any calibration of gain and crossover settings. The system can be rigged and ready in minutes.


Installation and Power

Tough and Light Enclosure

The MM-4's extruded aluminum enclosure acts as a heat sink to dissipate heat from the driver's voice coil, and is available in a black anodized or standard white painted finish and includes a perforated steel grille frame. It can also be custom painted to match specific color schemes.

Efficient and Compact

Patent-pending, passive, single-driver directional technology minimizes energy consumption, weight, and cabinet volume. The optional U-bracket mounts the loudspeaker on walls and ceilings at adjustable angles.

Power Supply Means No Conduits

Powering the MM-4XP from a unipolar external power source reduces induced noise significantly and eliminates the need for wiring conduits.

IntelligentDC for Long Cable Runs

The use of composite multiconductor cables allows a single cable to carry both DC power and audio. Powering the MM-4XPD from a unipolar external power source reduces induced noise significantly and eliminates the need for wiring conduits.



Tough and Light Enclosure

The MM-4's extruded aluminum enclosure acts as a heat sink to dissipate heat from the driver's voice coil, and is available in a black anodized or standard white painted finish and includes a perforated steel grille frame. It can also be custom painted to match specific color schemes.



Efficient and Compact

Patent-pending, passive, single-driver directional technology minimizes energy consumption, weight, and cabinet volume. The optional U-bracket mounts the loudspeaker on walls and ceilings at adjustable angles.



Power Supply Means No Conduits

Powering the MM-4XP from a unipolar external power source reduces induced noise significantly and eliminates the need for wiring conduits.



IntelligentDC for Long Cable Runs

The use of composite multiconductor cables allows a single cable to carry both DC power and audio. Powering the MM-4XPD from a unipolar external power source reduces induced noise significantly and eliminates the need for wiring conduits.



Solutions

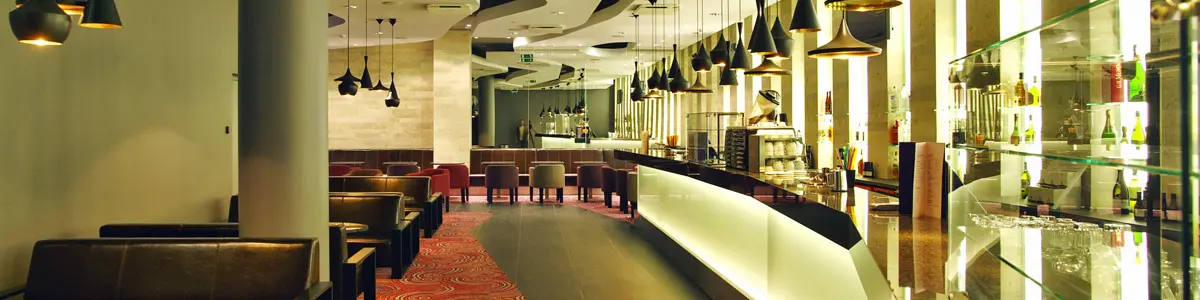

MM-4XP in use

CLUBS & BARS

It's highly beneficial that the MM-4XPs are so compact and easy to mount. They allow the system to cover everything from very minimal background music to full-on DJ sets.

Magued MakramCo-Founder and Managing Director, Modern Touch

SHOPPING CENTERS

I'm extremely happy with how it sounds. The MM-4XPs effortlessly reproduce both speech and music. Anyone who walks around the mall now will notice the difference. It's remarkably intelligible and balanced. Even walking down a 200-meter corridor you will not notice the sound level changing.

Malek GhorayebGeneral Manager, Systech Middle East


The Self-Powered Advantage

Meyer Sound has been pioneering self-powered loudspeakers for professional installations and touring since 1995. We’ve committed to self-powered systems because we know they deliver unrivaled clarity, reliable performance, value, and ease of use.

If you’ve been thinking about investing in a self-powered system, you’ve come to the right place.

John Meyer

First, a Little History...

The story of self-powered loudspeakers is in many ways the story of Meyer Sound itself.

In the 1970s, sound reinforcement technology was inconsistent science at best, and at worst, led to show-ending failures. A young John Meyer, designing loudspeakers for San Francisco’s McCune Sound Service, wanted to bring quality and reliability to sound systems, and he knew the answer lay in self-powered loudspeakers. In 1979 Meyer founded his own speaker company; early Meyer Sound innovations include the iconic HD-1 self-powered studio monitor launched in 1989.

Today Meyer Sound offers a full range of self-powered sound reinforcement products. Meyer Sound systems can be found on tour with artists ranging from Ed Sheeran to Metallica, on Broadway and London’s West End, and in performance venues from the San Francisco Opera to the Vienna Philharmonic   not to mention sports stadiums, cruise ships, and houses of worship around the world.

HD-1

Why Self-Powered?

Self-powered loudspeakers offer several advantages over their passive counterparts when it comes to fidelity, reliability, and simplicity. The great part is, you’ll start to reap the benefits of a self-powered system before you even power up.

Ease of deployment: System set-up is so much easier when you have fewer components and fewer cables to worry about being miswired. Since self-powered loudspeakers incorporate amplification, you’ll never have to deal with matching speakers to amplifiers or connecting components. You don’t have to worry about calibration of gain and crossover setting which means more time focusing on the show. Eliminating amp racks doesn’t just streamline system deployment, it streamlines your inventory   whether you’re a rental house or a road warrior. And when you consider that the average amp rack weighs nearly 300 pounds and takes up four feet of truck space, the efficiencies get even clearer. Let alone when you want to fly the amplifier racks to get closer to the speakers, often requiring more rigging points and more motors.

Predictable, reliable operation: Internal amplification is closely matched to drivers. Because individual components have been optimized during manufacturing, you can expect consistent sound from show to show. Built-in, factory-optimized protection circuitry provides extra assurance without degrading signal quality. And, when you have less equipment, you have less risk of failure.

ULTRA X-40

Better frequency and phase response: Because self-powered loudspeakers incorporate sophisticated processing, they are calibrated to exhibit optimal response curves in key performance parameters. Active crossovers are more precise, sophisticated designs, and bi-amped systems are time aligned, eliminating phase issues. The result? Accurate sound throughout the speaker’s range, at any volume level.

Unparalleled clarity: In, self-powered floor monitors internal amplifiers are precision-matched to drivers, delivering optimal power at all times for cleaner sound. And because amps are built into loudspeaker cabinets, there’s no need for long lengths of connecting cable, which can become prone to distortion and signal loss.

Tighter transients: Since self-powered loudspeakers have very short internal cables, amps inside can more effectively dampen driver mechanical motion, which leads to better sonic accuracy and tighter, crisper transients. (And, there’s none of the loss in levels and signal quality inherent over long cable distances.)

Certified Safe: Nothing matters more than the safety of your staff and customers. Because self-powered loudspeakers incorporate amplification, they must undergo rigorous testing by Underwriters Laboratories and other international organizations to ensure they operate safely and guard against the risk of fire, electric shock, and inadequate structural design. Enjoy peace of mind knowing Meyer Sound powered products are certified by FCC, UL, CSA, CE, and CEE   the most stringent agencies in the business.

The Problems with Passive

What about passive loudspeakers? At first glance, passive systems may seem like a bargain. But we already know that passive systems require more components and accessories than powered systems. Sonically, they exhibit potential for signal loss over distances, and it is very hard to ensure consistent, optimal sound and volume as amplifiers have many variables to consider when being matched to loudspeakers, such as cable lengths and gauge as well as the number of speakers connected to the amplifier.

Passive systems are often touted as easy to service. But because powered loudspeakers are so complex to design and build, self-powered loudspeakers usually represent the top innovations from leading manufacturers   better quality translates to better reliability, which means fewer maintenance issues in the long run.

At face value, passive systems might seem less expensive and easier to maintain. But once you start adding in amps, cables, and other components   not to mention increased transport and labor costs   you’ll find that those savings just don’t add up to a better value.

Step Up to a Self-Powered System

Once you recognize all of the advantages inherent in self-powered loudspeaker systems, it’s easy to understand why the world’s top venues and productions rely on them to deliver consistently stunning sound.


MM-4XP Accessories

MM-4 U-MOUNT RIGGING KIT
MUB-MM4
U-shaped Mounting Bracket for MM-4, BlackPart Number: 40.091.016.01
MUB-MM-4XP BLACK U-BRACKET KIT
MUB-MM-4XP
U-shaped mounting bracket for MM-4XP and MM-4XPV - BlackPart Number: 40.163.003.02
MUB-MM-4XP WHITE U-BRACKET KIT
MUB-MM-4XP
U-shaped mounting bracket for MM-4XP and MM-4XPV - WhitePart Number: 40.163.003.04
MUB-MM-4XPD BLACK U-BRACKET KIT
MUB-MM-4XPD
U-shaped mounting bracket for MM-4XPD - BlackPart Number: 40.204.010.01
