HMSCinema Surround Loudspeakers
HMS-5, HMS-10, HMS-12, HMS-15


  • RESOURCES
  • Find a Reseller

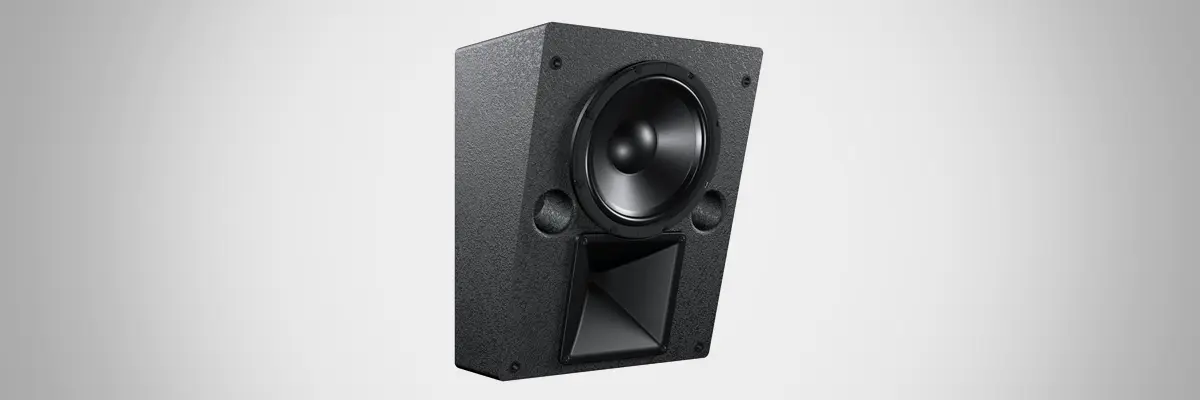

HMS

The Full Intensity and Nuance of Cinema Surround Sound

Complementing Acheron

Designed to complement Meyer Sound’s Acheron screen channel loudspeakers, the self-powered HMS maintains a wide dynamic range, exceptional fidelity, and precise clarity during the most demanding of digital soundtracks. It is available in four models: HMS-5, HMS-10, HMS-12, and HMS-15, ranging in size, weight, driver size, and power to accommodate a wide range of venues and applications.

The Intelligence of IntelligentDC

Equipped with IntelligentDC technology and receiving DC power and balanced audio from composite Phoenix 5-pin connectors, all except the HMS-15AC are powered from an external DC source, eliminating the need for AC conduits while preserving the advantages of self-powered systems.

Tonal Accuracy for Cinemas

Optimized for use in cinemas, high-end private theatres, screening rooms, and other surround applications, the self-powered, full-range HMS line exhibits extraordinarily flat amplitude and phase responses for tonal accuracy.

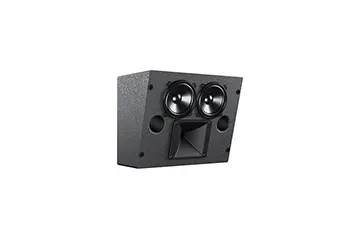

HMS-5

The compact HMS-5's transducers include two 5-inch low- frequency, long-excursion cone drivers and one 2-inch diaphragm high-frequency compression driver on a symmetrical, constant-directivity 80-degree horn.

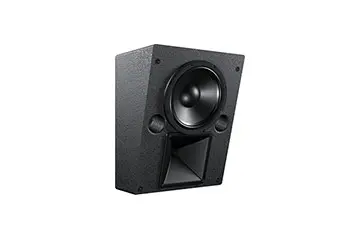

HMS-10

The HMS-10's transducers include one 10-inch low-frequency, long-excursion cone driver and one 2-inch diaphragm high-frequency compression driver on a symmetrical, constant-directivity 80-degree horn.

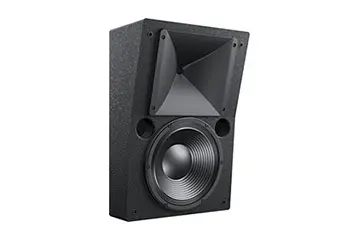

HMS-12

The HMS-12’s transducers include one 12-inch low-frequency, long-excursion cone driver and one 3-inch diaphragm high-frequency compression driver on a symmetrical, constant-directivity 100-degree horn.

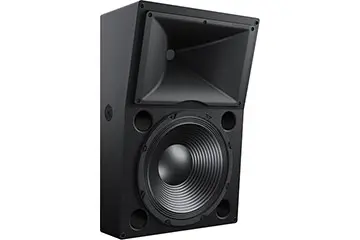

HMS-15

The HMS-15's transducers include a 15-inch low-frequency, long-excursion cone driver and a 3-inch diaphragm high-frequency compression driver on a constant-directivity 80-degree horizontal by 50-degree vertical horn. The HMS-15 requires two channels of DC power from an MPS-488HP external power supply. The HMS-15AC model is available for AC installations.

HMS-5HMS-10HMS-12

HMS-5

The compact HMS-5's transducers include two 5-inch low- frequency, long-excursion cone drivers and one 2-inch diaphragm high-frequency compression driver on a symmetrical, constant-directivity 80-degree horn.

HMS-5

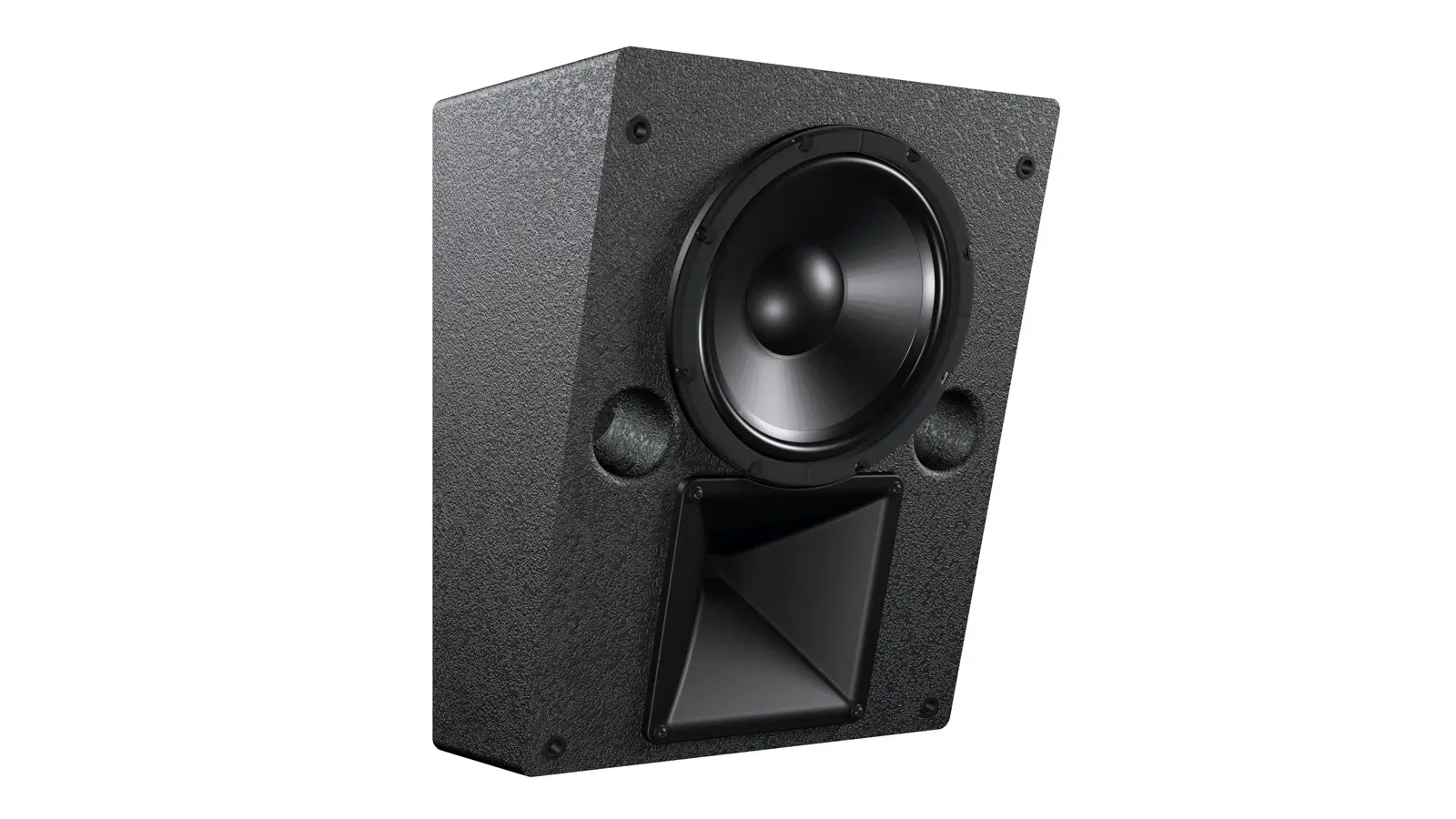

HMS-10

The HMS-10's transducers include one 10-inch low-frequency, long-excursion cone driver and one 2-inch diaphragm high-frequency compression driver on a symmetrical, constant-directivity 80-degree horn.

HMS-10

HMS-12

The HMS-12’s transducers include one 12-inch low-frequency, long-excursion cone driver and one 3-inch diaphragm high-frequency compression driver on a symmetrical, constant-directivity 100-degree horn.

HMS-12

HMS-15

The HMS-15's transducers include a 15-inch low-frequency, long-excursion cone driver and a 3-inch diaphragm high-frequency compression driver on a constant-directivity 80-degree horizontal by 50-degree vertical horn. The HMS-15 requires two channels of DC power from an MPS-488HP external power supply. The HMS-15AC model is available for AC installations.


The Self-Powered Advantage

Meyer Sound has been pioneering self-powered loudspeakers for professional installations and touring since 1995. We’ve committed to self-powered systems because we know they deliver unrivaled clarity, reliable performance, value, and ease of use.

If you’ve been thinking about investing in a self-powered system, you’ve come to the right place.

John Meyer

First, a Little History...

The story of self-powered loudspeakers is in many ways the story of Meyer Sound itself.

In the 1970s, sound reinforcement technology was inconsistent science at best, and at worst, led to show-ending failures. A young John Meyer, designing loudspeakers for San Francisco’s McCune Sound Service, wanted to bring quality and reliability to sound systems, and he knew the answer lay in self-powered loudspeakers. In 1979 Meyer founded his own speaker company; early Meyer Sound innovations include the iconic HD-1 self-powered studio monitor launched in 1989.

Today Meyer Sound offers a full range of self-powered sound reinforcement products. Meyer Sound systems can be found on tour with artists ranging from Ed Sheeran to Metallica, on Broadway and London’s West End, and in performance venues from the San Francisco Opera to the Vienna Philharmonic   not to mention sports stadiums, cruise ships, and houses of worship around the world.

HD-1

Why Self-Powered?

Self-powered loudspeakers offer several advantages over their passive counterparts when it comes to fidelity, reliability, and simplicity. The great part is, you’ll start to reap the benefits of a self-powered system before you even power up.

Ease of deployment: System set-up is so much easier when you have fewer components and fewer cables to worry about being miswired. Since self-powered loudspeakers incorporate amplification, you’ll never have to deal with matching speakers to amplifiers or connecting components. You don’t have to worry about calibration of gain and crossover setting which means more time focusing on the show. Eliminating amp racks doesn’t just streamline system deployment, it streamlines your inventory   whether you’re a rental house or a road warrior. And when you consider that the average amp rack weighs nearly 300 pounds and takes up four feet of truck space, the efficiencies get even clearer. Let alone when you want to fly the amplifier racks to get closer to the speakers, often requiring more rigging points and more motors.

Predictable, reliable operation: Internal amplification is closely matched to drivers. Because individual components have been optimized during manufacturing, you can expect consistent sound from show to show. Built-in, factory-optimized protection circuitry provides extra assurance without degrading signal quality. And, when you have less equipment, you have less risk of failure.

ULTRA X-40

Better frequency and phase response: Because self-powered loudspeakers incorporate sophisticated processing, they are calibrated to exhibit optimal response curves in key performance parameters. Active crossovers are more precise, sophisticated designs, and bi-amped systems are time aligned, eliminating phase issues. The result? Accurate sound throughout the speaker’s range, at any volume level.

Unparalleled clarity: In, self-powered floor monitors internal amplifiers are precision-matched to drivers, delivering optimal power at all times for cleaner sound. And because amps are built into loudspeaker cabinets, there’s no need for long lengths of connecting cable, which can become prone to distortion and signal loss.

Tighter transients: Since self-powered loudspeakers have very short internal cables, amps inside can more effectively dampen driver mechanical motion, which leads to better sonic accuracy and tighter, crisper transients. (And, there’s none of the loss in levels and signal quality inherent over long cable distances.)

Certified Safe: Nothing matters more than the safety of your staff and customers. Because self-powered loudspeakers incorporate amplification, they must undergo rigorous testing by Underwriters Laboratories and other international organizations to ensure they operate safely and guard against the risk of fire, electric shock, and inadequate structural design. Enjoy peace of mind knowing Meyer Sound powered products are certified by FCC, UL, CSA, CE, and CEE   the most stringent agencies in the business.

The Problems with Passive

What about passive loudspeakers? At first glance, passive systems may seem like a bargain. But we already know that passive systems require more components and accessories than powered systems. Sonically, they exhibit potential for signal loss over distances, and it is very hard to ensure consistent, optimal sound and volume as amplifiers have many variables to consider when being matched to loudspeakers, such as cable lengths and gauge as well as the number of speakers connected to the amplifier.

Passive systems are often touted as easy to service. But because powered loudspeakers are so complex to design and build, self-powered loudspeakers usually represent the top innovations from leading manufacturers   better quality translates to better reliability, which means fewer maintenance issues in the long run.

At face value, passive systems might seem less expensive and easier to maintain. But once you start adding in amps, cables, and other components   not to mention increased transport and labor costs   you’ll find that those savings just don’t add up to a better value.

Step Up to a Self-Powered System

Once you recognize all of the advantages inherent in self-powered loudspeaker systems, it’s easy to understand why the world’s top venues and productions rely on them to deliver consistently stunning sound.


HMS Accessories

AMB-HMS TILT BRACKET REPLACEMENT KIT
AMB-HMS
HMS adjustable mounting bracket for HMS-12, HMS-10, and HMS-5Part Number: 40.198.041.01
FMB-HMS-10 FIXED BRACKET REPLACEMENT KIT
FMB-HMS
HMS flush mount fixed bracket for HMS-12, HMS-10, and HMS-5Part Number: 40.198.040.01
HMS WALL HINGE BRACKET KIT
WH-HMS
HMS wall hinge bracket allows HMS-15, HMS-12, HMS-10, and HMS-5 to be panned 0 to 90 degrees with respect to the wall.Part Number: 40.227.030.01
HMS HALF YOKE KIT
HY-HMS
HMS half-yoke allows the HMS-12, HMS-10, and HMS-5 to be mounted vertically from the ceiling.Part Number: 40.227.031.01
HMS MUB KIT
MUB-HMS
HMS MUB kit allows the HMS-12, HMS-10, and HMS-5 to be mounted horizontally from the ceiling.Part Number: 40.227.032.01
HMS-15 CEILING MOUNT BRACKET KIT
CMB-HMS-15
ceiling mount bracket kitPart Number: 40.242.025.01
HMS-15 RIGGING YOKE KIT
MYA-HMS-15
rigging yoke kitPart Number: 40.242.035.01
