CompassControl Software


Compass

Easy to Use

Compass is a comprehensive and intuitive way to control all the features and power offered by Galileo GALAXY and CAL.

Remote Monitoring System

Compass software can also integrate with RMServer to monitor the health and status of any twisted pair connected loudspeaker or Intelligent D.C Power Supply equipped with an RMS module. RMS projects store system-wide loudspeaker configurations including page layouts and viewing options for icon, meter, and text.

Complete System Control

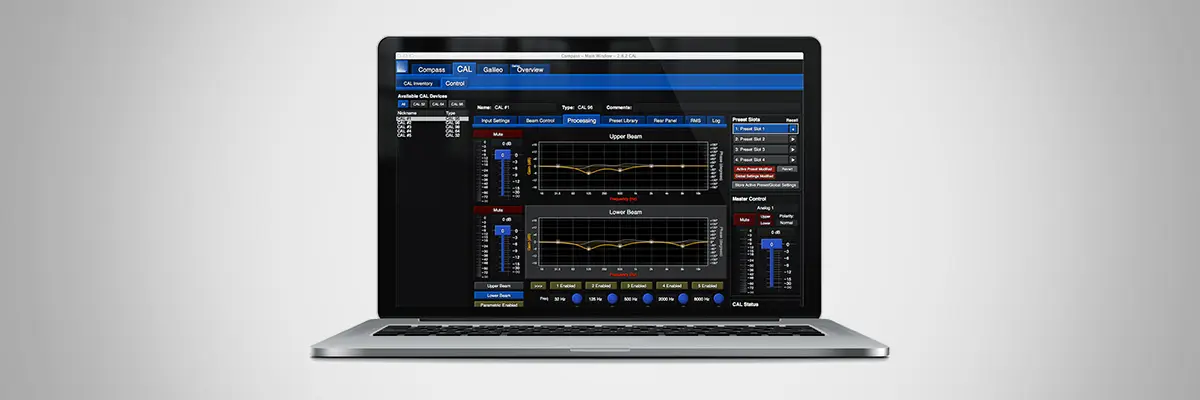

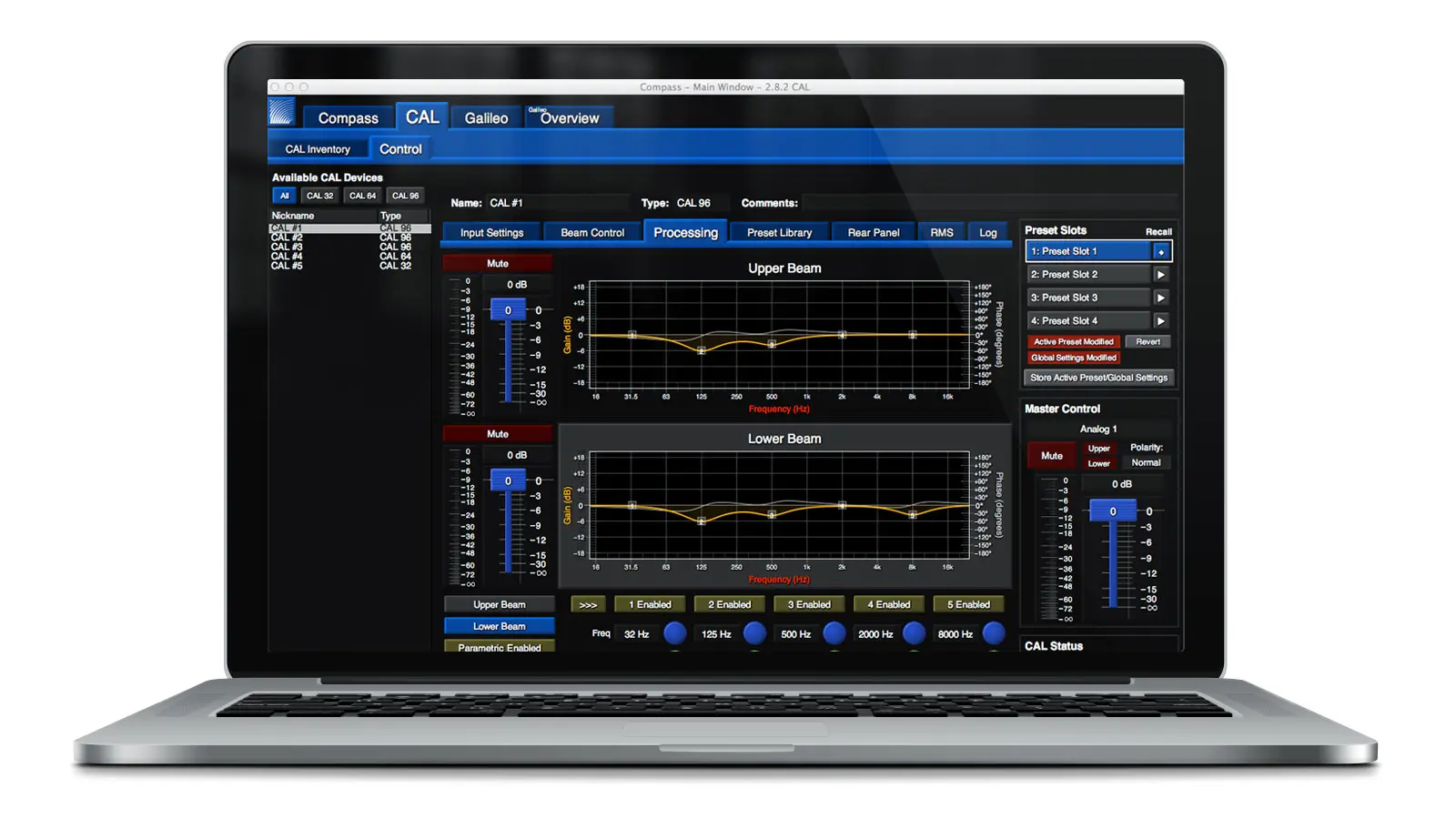

Compass provides a graphical user interface that displays detailed information and controls all device settings including GALAXY Control Pages, Parametric and U-Shaping EQ, AVB Network Settings, Delay Integration, High and Low Pass Filters, CAL Beam Control, and RMS.


Compass 4.2.1 Release Notes

Compass 3.12.0 Release Notes


Compass 4.1.0 for GALAXY
Release Notes

Compass 4.1.0 supports the following operating systems:

  • OS X 10.11 (El Capitan) and mac OS 10.12 (Sierra)
  • Windows 8.1 Professional and Windows 10 Professional

Compass 4.1.0 software requires the following firmware versions:

  • GALAXY v1.1.0
  • RMServer v2.1.0

Firmware NOT Supported in Compass Version 4.1.0:

  • Galileo and Callisto v3.11.0 or earlier
  • RMServer v2.0.1 or earlier
  • CAL Firmware (All Versions)

New Features

  1. AVnu certified GALAXY firmware: http://avnu.org/certified-products/
  2. Compass Input and Output Settings function allows connect and disconnect for AVB streams.

Enhancements

  1. Compass Desktop application icon updated for Windows and Mac operating systems.
  2. Updated input and output settings tab displays the sample rate for each processor input.
  3. Updated input and output settings tab includes conditional enable/bypass functionality for the asynchronus sample rate converters for each input recieving AES or AVB signals. If the sample rate matches the internal sample rate of 96kHz, the ASRC can be disabled per input.
  4. Updated AVB browser page include internal controller and external controller mode.
  5. A single raster image file can be used as background for each layout page in Compass RMS.
  6. Status Information fixed for LEOPARD and 900-LFC in Compass RMS.

Bug Fixes

  1. Fixed a bug when muting all loudspeakers that RMServer briefly report OFFLINE speakers as ONLINE and mute them.

Known Issues

  1. GALAXY 816-AES3 device will be listed as 816AES in the Compass software
  2. RMServer Firmware 2.1.0 is not compatible with Compass 3.11.0

We are regularly releasing performance improvements and bug fixes. Every update includes improvements to the software and firmware. As new features become available, we will highlight them in the release notes.


Compass 3.11.0 for Galileo, Callisto, and CAL
Release Notes

Compass 3.11.0 supports the following operating systems:

  • OS X 10.11 (El Capitan) and OS X 10.12 (Sierra)
  • Windows 8.1 Professional and Windows 10

Compass 3.11.0 software requires the following firmware versions:

  • Galileo and Callisto v3.11.0
  • RMServer v2.0.1
  • CAL v1.2.4
  • AVDECC Proxy v1.0.6 (For CAL Only)

Firmware NOT Supported in Compass Version 3.11.0:

  • RMServer v1.7.2 and all previous versions
  • CAL v1.2.2 and all previous versions
  • GALAXY Firmware v1.0.3

Enhancements

  • RMServer firmware has been updated to no longer rely on AVDECC Proxy or third party programs. NOTE: You cannot control RMServer on a single client with both active wireless and wired connection adapters simultaneously. You must choose one or the other prior to operation. You cannot connect using one method and then switch to another during operation.
  • CAL Firmware has been updated with bug fixes and stability improvements.

Bug Fix

  1. Fixed a bug where some speakers icon view driver color is black.

Known Issues

  • Users can encounter a rare condition where a loudspeaker can report NOT IN INVENTORY instead of UNKNOWN after the identity of that loudspeaker is erased. A NOT IN INVENTORY status disables all right click menu options for a selected loudspeaker. This blocks the user from initializing that loudspeaker’s identity. If this condition occurs, quit and re-launch Compass and the loudspeaker should report the correct UNKNOWN status. This will enable all appropriate command options under the right-click menu.

We are regularly releasing performance improvements and bug fixes. Every update includes improvements to the software and firmware. As new features become available, we will highlight them in the release notes.


Compass 4.1.0 for GALAXY
Release Notes

Compass 4.1.0 supports the following operating systems:

  • OS X 10.11 (El Capitan) and mac OS 10.12 (Sierra)
  • Windows 8.1 Professional and Windows 10 Professional

Compass 4.1.0 software requires the following firmware versions:

  • GALAXY v1.1.0
  • RMServer v2.1.0

Firmware NOT Supported in Compass Version 4.1.0:

  • Galileo and Callisto v3.11.0 or earlier
  • RMServer v2.0.1 or earlier
  • CAL Firmware (All Versions)

New Features

  1. AVnu certified GALAXY firmware: http://avnu.org/certified-products/
  2. Compass Input and Output Settings function allows connect and disconnect for AVB streams.

Enhancements

  1. Compass Desktop application icon updated for Windows and Mac operating systems.
  2. Updated input and output settings tab displays the sample rate for each processor input.
  3. Updated input and output settings tab includes conditional enable/bypass functionality for the asynchronus sample rate converters for each input recieving AES or AVB signals. If the sample rate matches the internal sample rate of 96kHz, the ASRC can be disabled per input.
  4. Updated AVB browser page include internal controller and external controller mode.
  5. A single raster image file can be used as background for each layout page in Compass RMS.
  6. Status Information fixed for LEOPARD and 900-LFC in Compass RMS.

Bug Fixes

  1. Fixed a bug when muting all loudspeakers that RMServer briefly report OFFLINE speakers as ONLINE and mute them.

Known Issues

  1. GALAXY 816-AES3 device will be listed as 816AES in the Compass software
  2. RMServer Firmware 2.1.0 is not compatible with Compass 3.11.0

We are regularly releasing performance improvements and bug fixes. Every update includes improvements to the software and firmware. As new features become available, we will highlight them in the release notes.


Compass 3.11.0 for Galileo, Callisto, and CAL
Release Notes

Compass 3.11.0 supports the following operating systems:

  • OS X 10.11 (El Capitan) and OS X 10.12 (Sierra)
  • Windows 8.1 Professional and Windows 10

Compass 3.11.0 software requires the following firmware versions:

  • Galileo and Callisto v3.11.0
  • RMServer v2.0.1
  • CAL v1.2.4
  • AVDECC Proxy v1.0.6 (For CAL Only)

Firmware NOT Supported in Compass Version 3.11.0:

  • RMServer v1.7.2 and all previous versions
  • CAL v1.2.2 and all previous versions
  • GALAXY Firmware v1.0.3

Enhancements

  • RMServer firmware has been updated to no longer rely on AVDECC Proxy or third party programs. NOTE: You cannot control RMServer on a single client with both active wireless and wired connection adapters simultaneously. You must choose one or the other prior to operation. You cannot connect using one method and then switch to another during operation.
  • CAL Firmware has been updated with bug fixes and stability improvements.

Bug Fix

  1. Fixed a bug where some speakers icon view driver color is black.

Known Issues

  • Users can encounter a rare condition where a loudspeaker can report NOT IN INVENTORY instead of UNKNOWN after the identity of that loudspeaker is erased. A NOT IN INVENTORY status disables all right click menu options for a selected loudspeaker. This blocks the user from initializing that loudspeaker’s identity. If this condition occurs, quit and re-launch Compass and the loudspeaker should report the correct UNKNOWN status. This will enable all appropriate command options under the right-click menu.

We are regularly releasing performance improvements and bug fixes. Every update includes improvements to the software and firmware. As new features become available, we will highlight them in the release notes.
